U31H201

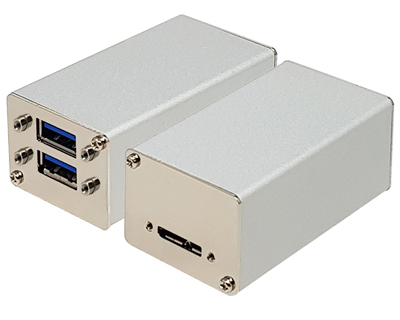

Two-Port USB 3.1 Gen 2 Hub (Boost the USB Bus-Power Voltage)

U31H201

Highlights

  • USB 3.1 Gen 2 2-port Hub
  • Designed with VL820 (USB 3.1 Gen 2 Compliant Hub, TID# 5030000002)
  • Supports USB 3.1 SuperSpeed Plus (10Gbps), SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
  • Bus-Power Hub
    • Boost USB Bus-Power Voltage
  • USB 3.1 cable ports
    • One upstream USB 3.1 cable port ( Micro B-type Receptacle), TID# 361000096
    • Two downstream USB 3.1 cable ports (Standard A-type Receptacle), TID# 360000003
    • Provides USB 3.1 cable port lock mechanism
  • No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

Introduction

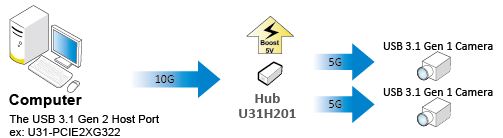

U31H201 is a high-performance two port Universal Serial Bus (USB) 3.1 Gen 2 compliant Hub (Boost the USB Bus-Power Voltage), extending your USB 3.1 signals an additional length (Gen1: 4~7m, Gen 2: 2~3.5m).

One upstream port and two downstream ports support not just SuperSpeed Plus transfer, but are also backwards compatible with previous USB specifications and offer support for SuperSpeed(5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

U31H201 allows for a maximum data transfer rate of up to 10Gbps, or twenty times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

Note: The greater the number of hubs or the length of a cable, the higher the electricity consumption.
This results in a decrease in electricity supplied to the terminal device.

Technical Specifications

  • USB 3.1 Compliant Hub
    • Compliant to Universal Serial Bus 3.1 Specification
    • SuperSpeed Plus USB (USB 3.1 Gen 2)
    • Compliant to Universal Serial Bus 2.0 Specification
    • USB 2.0 Hub Support MTT
    • Supports Simultaneous Operation of Any Combination of Super-speed Plus (SSP), Super-speed (SS), high-speed (HS) and full-speed (FS) and Low-Speed (LS) Device.
    • Supports USB Power Saving Features such as Link Power Management, Ux States, Selective Suspend, and Function Suspend
  • USB Bus Power
    • Designed with high-efficiency, synchronous step-up converter to guaranteed 2.1A output current at VOUT = 5V
  • Provides USB 3.1 cable port lock mechanism
    • Upstream (Micro B-type Receptacle) USB 3.1 cable lock mechanism
    • Downstream (Standard A-type Receptacle) USB 3.1 cable lock mechanism
