U32H401E

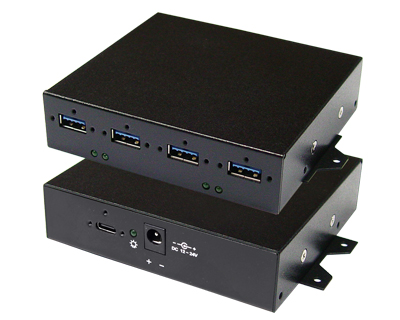

Four-Port USB 3.2 Gen 2x2 (20Gbps) HUB (3.5" FDD Form Factor)

U3H414E

Highlights

  • USB 3.2 Gen 2x2 Compliant 4-port Hub
    • Supports one UFP (Upstream Facing Port) and four DFPs (Downstream Facing Ports)
    • One UFP (Upstream Facing Port) supports USB 3.2 Gen 2x2 (20Gbps)
      • Type-C Receptacle Connector, TID# 4660
    • Four DFPs (Downstream Facing Ports) support USB 3.2 Gen 2x1 (10Gbps)
      • Standard A-type Receptacle Connector, TID# 360000145
  • Per Port Power Switching and Over-Current Notification
    • The Vbus of each USB Port has a 2.0A Single Channel Current-Limited Power Switch for protection; UL File Number E169910 (TPS2001C)
  • Supports USB Battery Charging Specification Revision 1.2
  • No Special Driver Requirements; Works Seamlessly on Any Operating System With USB Stack Support
  • 3.5" FDD Form Factor Metal Enclosure

Introduction

The U32H401E is a high-performance 4-port USB 3.2 Gen 2x2 Hub, featuring one Type-C UFP (Upstream Facing Port) and four Std-A DFPs (Downstream Facing Ports).

Utilizing the high-performance USB 3.2 Gen 2x2 (20 Gbps) UFP, it provides an efficient fan-out solution for four USB 3.2 Gen 2x1 (10 Gbps) DFPs. The DFPs support not only SuperSpeed Plus (10 Gbps) transfer, but are also backward compatible with previous USB specifications, offering support for SuperSpeed (5 Gbps), Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) traffic.

Technical Specifications

  • USB 3.2 Compliant Hub; TID 10431
    • Compliant with USB 3.2 specification Revision 1.0
    • The UFP supports USB 3.2 Gen 2x2 (20Gbps) with CC logic implemented, High-Speed and Full-Speed Connections
    • 4 DFPs support USB 3.2 Gen 2x1 (10Gbps), High-Speed, Full-Speed and Low-Speed Connections
    • Implements USB 3.0 power management function
    • SuperSpeed Link Power Management support
    • USB 2.0 Link Power Management support
    • USB Attached SCSI Protocol Revision 1.0 Compliance
    • Multiple Transaction Translator support
  • Downstream Facing Port Configuration
    • Enabled all Downstream Port
    • Marked as Removable
    • Battery Charging
      • Supports battery charging of most battery powered devices on all ports
      • USB-IF Battery Charging rev. 1.2 support (CDP & SDP)
  • Downstream USB Bus Power
    • Each DFPs (P1 ~ P4) can supply up to 2.0A
    • Supports Over-current detection and Individual power control
    • The Vbus of each USB Port has a 2.0A Single Channel Current-Limited Power Switch for protection; UL File Number E169910 (TPS2001C)
  • U32H401E1 Power
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • U32H401E2 Power
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input Range: DC 9 ~ 24V ( max. 8.0A)
  • Self-powered operation
  • Customizable vendor ID, product ID, and device ID
  • USB3 cable ports (Provides USB 3.1 cable port lock mechanism)
    • One UFP (Type-C Receptacle)
    • Four DFPs (Standard A-type Receptacle)

Available Models

U32H401E1
Walkman-type 2.0 mm DC Jack 		U32H401E2
MINI-COMBICON Headers
