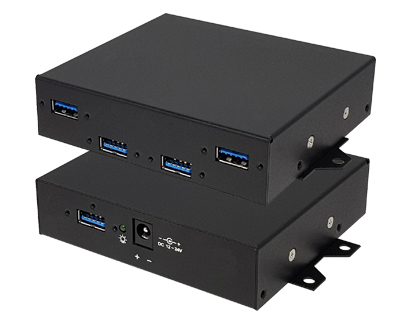

IOIUSB | U31H401E | Four downstream ports USB 3.1 Gen 2 (10Gbps) HUB (3.5" FDD Form Factor)

U31H401E

Four downstream ports USB 3.1 Gen 2 (10Gbps) HUB (3.5" FDD Form Factor)

U31H401

Highlights

  • USB 3.1 Gen 2 (10Gbps) 4-port Hub
  • Designed with VL820 (USB 3.1 Gen 2 Compliant Hub, TID# 5030000002)
  • Supports USB 3.1 SuperSpeed Plus (10Gbps), SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
  • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • Rugged Metal Housing design
  • USB cable ports
    • UFP (Upstream Facing Port): USB 3.1 Standard A-type Receptacle, TID# 360000003
    • DFP (Downstream Facing Port): Four USB 3.1 Standard A-type Receptacle, TID# 360000003
    • Provides USB 3.0 Vision Standard cable port lock mechanism
  • No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

Introduction

U31H401E is a high-performance four port Universal Serial Bus (USB) 3.1 Gen 2 (10Gbps) compliant Hub.

One upstream port and four downstream ports support not just SuperSpeed Plus transfer, but are also backwards compatible with previous USB specifications and offer support for SuperSpeed(5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

U31H401E allows for a maximum data transfer rate of up to 10Gbps, or twenty times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

Technical Specifications

  • USB 3.1 Compliant Hub
    • Compliant to Universal Serial Bus 3.1 Specification
    • SuperSpeed Plus USB (USB 3.1 Gen 2)
    • Compliant to Universal Serial Bus 2.0 Specification
    • USB 2.0 Hub Support MTT
    • Supports Simultaneous Operation of Any Combination of Super-speed Plus (SSP), Super-speed (SS), high-speed (HS) and full-speed (FS) and Low-Speed (LS) Device
    • Supports USB Power Saving Features such as Link Power Management, Ux States, Selective Suspend, and Function Suspend
  • U31H401E1 Power
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • U31H401E2 Power
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input Range: DC 9 ~ 24V ( max. 8.0A)
  • Self-powered operation.
  • DFP (Downstream Facing Port) USB Bus Power
    • Each DFP (P1 ~ P4) can supply up to 2.0A
    • Supports Per Port Power Switching and Over-Current Notification
    • Single Channel Current-Limited Power Switch (UL File Number E322375)
  • Provides USB 3.0 Vision Standard cable port lock mechanism
    • UFP (Upstream Facing Port): Three holes for the jack-screws of USB A Plug
      w/Jackscrew lock Cable
    • DFP (Downstream Facing Port): Two holes for the jack-screws of USB A Plug
      w/Jackscrew lock Cable

Available Models

U31H401E1
Walkman-type 2.0 mm DC Jack
U31H401E2
MINI-COMBICON Headers
